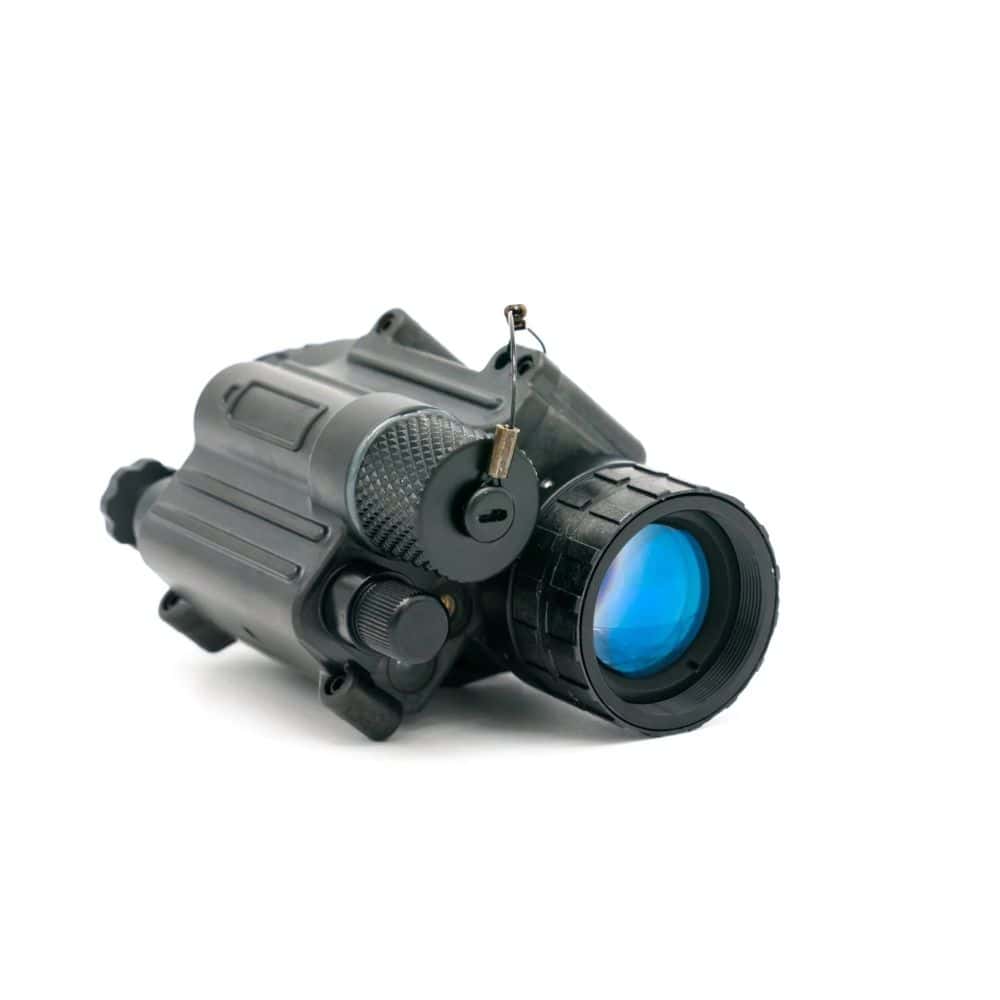

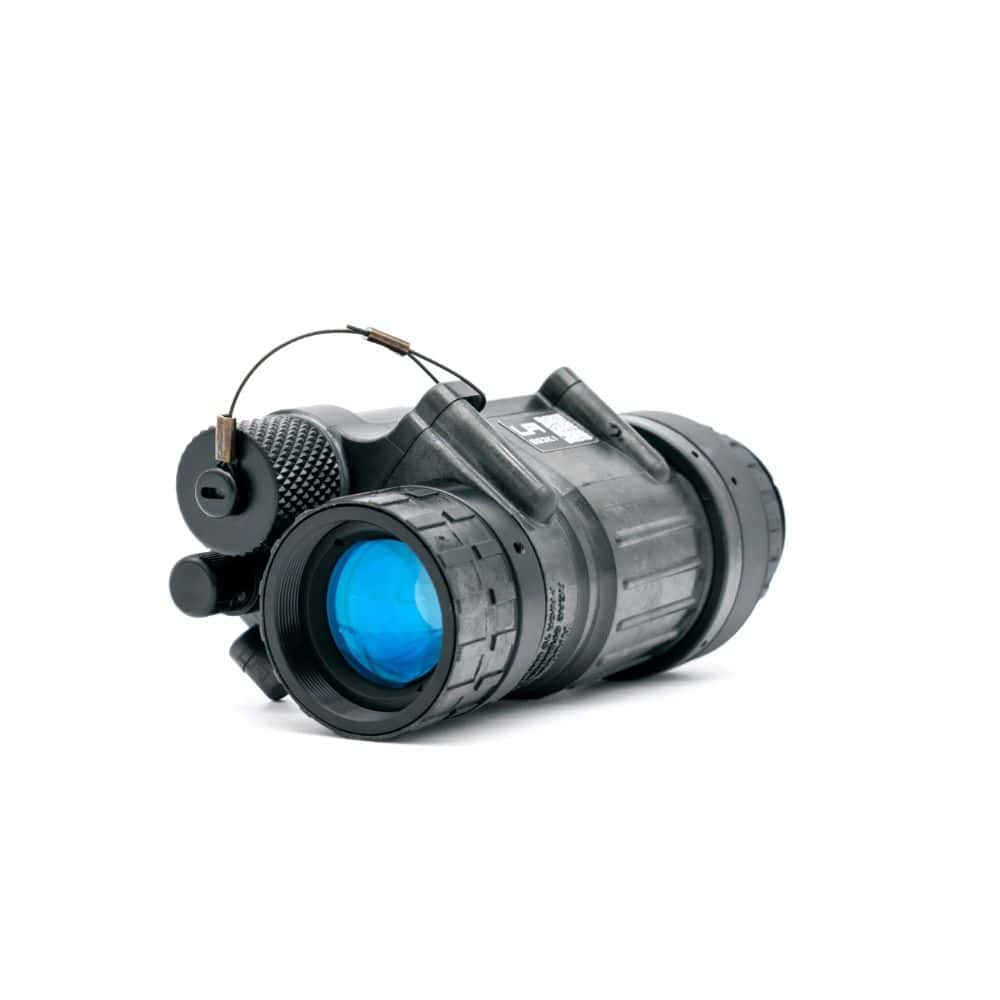

Originally designed for the U.S. army
MIL-STD-810
Lightweight
1x magnification
Automatic Brightness Control
Waterproof
Hand-held or head-mounted as single eye goggle
Bright Light Cut-off
DIMENSIONS 4.5″(L) x 2.0″(W) x 2.25″(H)
WEIGHT 12.4oz.
FINISH Corrosion Resistant- Matte Black, FDE, or Crye MulticamTM
POWER One (1) Standard AA Battery
BATTERY LIFE Approx. 50 Hours at Room Temp.
WATERPROOF 60′ for 2 Hours
WARRANTY Lifetime System Warranty & 10 Year Warranty on image intensifiers
OPTICAL ————————————————————
GENERATION U.S. Gen3 L3Harris MIL-SPEC
RESOLUTION 64-72 lp/mm Typical
SNR 24:1 (Minimum)
HALO 1.0 (Maximum)
FILM Thin-Film
GATE Auto
GAIN Adjustable/ Variable
MAGNIFICATION 1X +0.03
FOV 40º + 2º
OBJECTIVE LENS F/1.2
OCULAR LENS EFL 26mm
DIOPTER +4 to -6
FOCUS 10″ to Infinity
TNV/PVS-14, PVS-14 Adapter (J-Arm)- Color-Matched to Goggle, Rubber Eye Cup, Daylight Filter, Sacrificial Window, Demist Shield, Neck Cord, Soft Carry Case, Two (2x) AA Batteries, Lens Cleaning Tissue, Military Maintenance Standards, Warranty Registration
